TEMBO / TGTR00 - TGDPA0 - TGWA00
Threaded Rods & Fixing Accessories
Full-thread rod from M6 to M100 with the concrete anchors, nuts, and washers that complete every hanger drop - specified by grade and finish, delivered as one package.
Rod sizesM6-M1001/4" to 4"
GradesB7/8.8/SSHigh-tensile to stainless
AnchorsM6-M20Drop-in to wedge
Overview
Every drop ends in rod and an anchor.

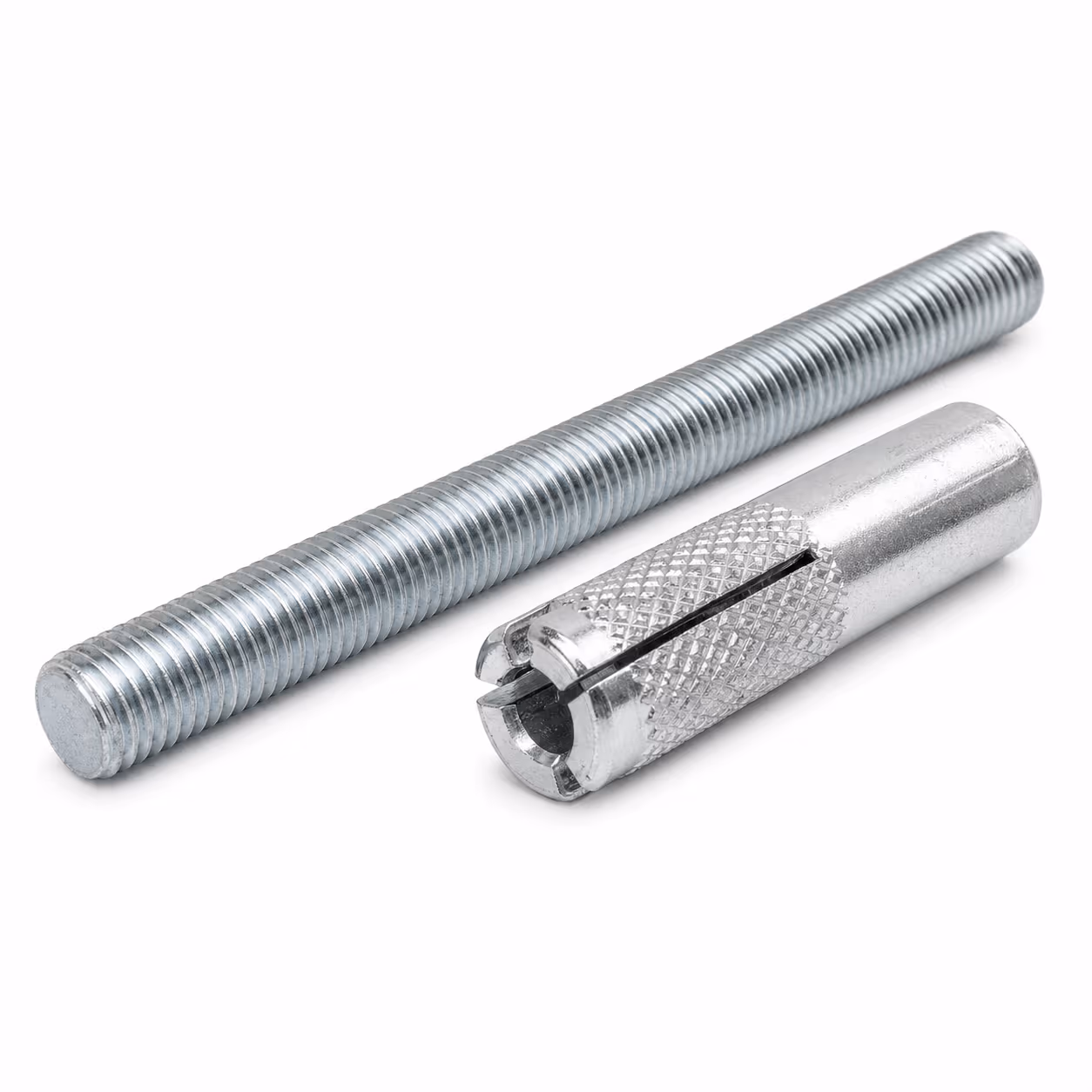

Every suspended support ends in rod and an anchor, and getting the grade right matters as much as the hanger itself. TEMBO manufactures full-threaded bars from M6 to M100 (1/4" to 4") in UNC, UNF, metric coarse, and metric fine threads, in grades from BS 3692 4.6 through 8.8 to ASTM A193 B7/B8 and stainless 304/316 - covering everything from light plumbing drops to high-temperature and structural applications.
Concrete fixings complete the package: drop-in anchors (TGDPA0, M8-M20) for flush fixings in slab soffits, draw-in anchors (TGDWA0, M6-M16), and wedge anchors for higher tension loads, plus hex nuts, coupling nuts, and washers in matching grades and finishes.
Combined Cooperation stocks the common Kuwait project sizes with electro-galvanized, hot-dip galvanized, and zinc flake finishes, and can supply cut-to-length rod against a BOQ take-off.
Full thread, M6 to M100
Grades 4.6 to B7 & SS
Drop-in & wedge anchors
Seven finish options
Technical specifications
Rod size rangeM6 to M100 (1/4" to 4")
ThreadsUNC, 8UN, UNF, metric coarse, metric fine
Typical gradesASTM A193 B7/B8/B16, ASTM A320 L7, BS 3692 4.6-8.8, SS 304/304L/316/316L
StandardsASTM / ASME / BS / DIN / BS EN ISO / JIS
Drop-in anchorsM8 to M20 (TGDPA0)
Draw-in anchorsM6 to M16 (TGDWA0)
FinishesPlain, electro-galvanized, hot-dip galvanized, zinc flake, yellow, cadmium, nickel
AccessoriesHex nuts, coupling nuts, channel nuts, washers
Product range
Product options and applications.
Explore the TEMBO range for your installation. Send the equipment or support schedule for a quotation and the matching product documentation.
Hanger rod drops for all support typesConcrete soffit fixingsEquipment anchoringStructural and high-temperature bolting
Questions & answers
Common questions about threaded rods & fixing accessories.
01Which rod grade should be specified for high-temperature or structural bolting?
BS 3692 grades 4.6 to 8.8 cover general hanger drops. For high-temperature and structural bolting the range includes ASTM A193 B7, B8, and B16, with ASTM A320 L7 also available, and stainless 304, 304L, 316, or 316L is available where the specification calls for stainless rod.
02Drop-in, draw-in, or wedge anchor — which one for a slab soffit?
Drop-in anchors (TGDPA0, M8 to M20) give a flush fixing in slab soffits for hanger rod. Draw-in anchors (TGDWA0) cover M6 to M16, and wedge anchors are the choice where the fixing takes higher tension. The anchor size should match the rod it carries.
03Do you supply metric and imperial threads?
Yes. Rod runs from M6 to M100 and from 1/4" to 4", in UNC, 8UN, UNF, metric coarse, and metric fine threads, made to ASTM, ASME, BS, DIN, BS EN ISO, and JIS standards. Hex nuts, coupling nuts, channel nuts, and washers are supplied in matching threads and grades.
04Can threaded rod be cut to length against a BOQ?
Yes. Rod can be supplied cut to length against a BOQ take-off, in plain, electro-galvanized, hot-dip galvanized, zinc flake, yellow, cadmium, or nickel finishes. State the size, thread, grade, finish, and cut lengths.
