UL/FM clevis hangers
MSS SP-58 Type 1, DN15 to DN750 on M10–M30 rod. UL listed and FM approved variants for fire mains; plain, hot-dip, zinc flake and epoxy finishes for everything else.
View detailsPipe hanger supply — Kuwait
Pipe hangers and supports in Kuwait — clevis hangers, lined clamps, beam clamps and rod, DN15 to DN750.

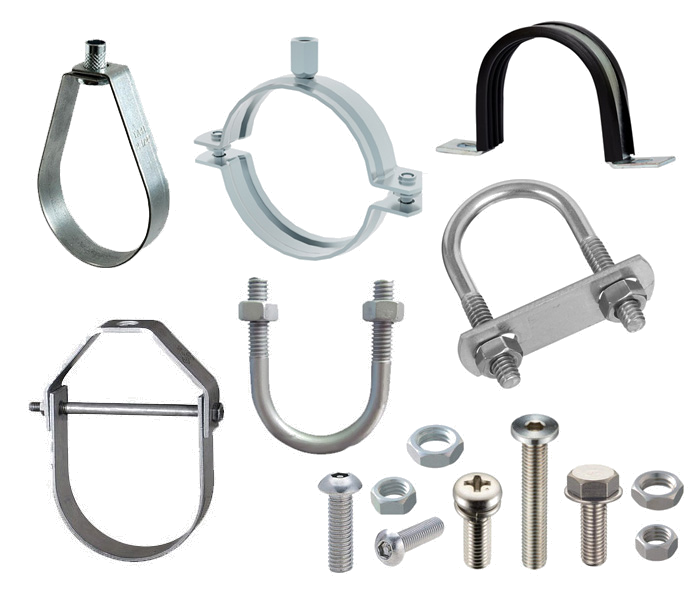

Combined Cooperation supplies TEMBO pipe hangers and supports in Kuwait for HVAC, plumbing, fire protection and industrial pipework: MSS SP-58 Type 1 clevis hangers from DN15 to DN750, UL listed and FM approved Type 10 sprinkler hangers, EPDM-lined split clamps, beam clamps, roller supports, strut channel, and the threaded rod and anchors that complete every drop — selected and quoted from your support schedule.
Selection context
- Design standard
- ANSI/MSS SP-58 (Types 1, 10, 19, 23, 41–45)
- Approvals
- UL listed / FM approved options (clevis, sprinkler hanger, lined clamp)
- Sizes
- DN15 to DN750 (½″ to 30″)
- Rod and anchors
- M6–M100 rod; drop-in, draw-in and wedge anchors
- Clevis hangers DN15–750, sprinkler hangers DN20–200 and EPDM-lined clamps DN15–80.
- UL listed and FM approved hanger options for sprinkler scopes reviewed against NFPA 13; MSS SP-58 conformance across the range.
- Electro-galvanized, hot-dip galvanized, zinc flake, epoxy and SS316 finishes matched to plant rooms, rooftops and coastal sites.
Product range
Hanger types, fixing accessories and finishes.
Explore TEMBO clevis and sprinkler hangers, lined clamps, beam clamps, roller supports, threaded rod and anchors. Send your support schedule, pipe sizes and finish requirements for a quotation.
MSS SP-58 type numbers for the supports we supply
The type number is what a consultant's support schedule and submittal review are written against.
| Support | MSS SP-58 type | Sizes | TEMBO series | Where it goes |
|---|---|---|---|---|
| Clevis hanger | Type 1 | DN15–750 | TGCH00 | Suspended steel and plastic pipe; UL/FM variants for fire mains |
| Sprinkler hanger, with or without nut | Type 10 | DN20–200 | TGSHN0 / TGSH00 | Wet, dry and pre-action sprinkler mains and branch lines |
| Beam clamp, ductile iron | Types 19 & 23 | M10 / M12 rod | TGBC00 | Hanger rod to beam flanges without welding |
| Beam clamps, steel patterns | Types 19 & 23 | M10 / M12 rod | TGCBC0 / TGBBC0 / TGPBC0 / TGSBC0 | Purlins, box sections and square-bolt fixings |
| Roller stand, roller chair, adjustable roller hanger | Types 41, 43, 44, 45 | DN50–750 | TGPRS0 / TGPRC0 / TGARH0 / TGPR00 | Long hot or cold runs that expand along their axis; 343 °C |
MSS SP-58 is a design standard manufacturers conform to; there is no third-party SP-58 certificate. The third-party marks on this range are UL listing and FM approval on the clevis, sprinkler hanger and lined clamp variants.
Rod and anchors — what completes the drop
Threaded rod, nuts and anchors complete the suspended support assembly.
| Item | Range | Grades | Use |
|---|---|---|---|
| Threaded rod, full thread | M6–M100 (¼″–4″) | BS 3692 4.6–8.8; ASTM A193 B7 / B8 / B16; SS 304 / 316 | Every hanger drop; B7 where the schedule calls for high-tensile rod, SS 316 for coastal or chloride exposure |
| Drop-in anchor (TGDPA0) | M8–M20 | Matched to the rod finish | Flush fixing in concrete slab soffits for standard hanger drops |
| Draw-in anchor (TGDWA0) | M6–M16 | Matched to the rod finish | Lighter drops and secondary fixings |
| Wedge anchor | To M20 | Matched to the rod finish | Higher tension loads at the slab |
| Hex, coupling and channel nuts, washers | To suit M6–M100 | Same grade as the rod | Rod extensions, strut connections and hanger adjustment |
Rod is cut to length against a BOQ take-off. UNC, UNF, metric coarse and metric fine threads to ASTM, ASME, BS, DIN, BS EN ISO and JIS.
Finish selection for Kuwait sites
Match the finish to where the hanger lives, not to the catalogue default.
| Finish | Where it belongs | Notes |
|---|---|---|
| Electro-galvanized | Dry plant rooms, ceiling voids, risers and service shafts | Standard finish; the UL listed and FM approved clevis and sprinkler hanger variants are supplied electro-galvanized |
| Hot-dip galvanized | Rooftop plant, car parks, external pipe racks and anywhere with condensation, away from immediate coastal carry-over | Thicker zinc for outdoor exposure; the usual call for strut racks and rollers outside |
| Zinc flake / epoxy coated | Where the specification names a coated finish or a colour | Available on hangers, clamps, rollers and beam clamps |
| Stainless steel SS 316 | Direct coastal exposure, chloride attack, seawater and process areas | Rod, nuts and hangers in SS 316 / 316L on request |
Relevant products
Sprinkler hangers (Type 10)
One-piece hangers doubled at the support point, DN20 to DN200, with-nut and without-nut patterns, UL listed and FM approved for NFPA 13 sprinkler packages.
View details
EPDM-lined split clamps
Split-ring clamps DN15 to DN80 with a moulded EPDM insert rated −20 to +110 °C that cuts transmitted noise by up to 18 dB and keeps PPR, PEX and copper off bare steel.
View detailsChoosing and ordering
Three decisions per drop, then the support schedule — and the quote follows.
Most pipe hanger enquiries in Kuwait resolve into three either/or choices per pipe run. This is how our team works through a support schedule when it arrives, and what we need from you to price it.
- Decision 1 · Scope
Fire protection or building services?
UL/FM sprinkler hangerType 10, DN20–200Sprinkler mains and branch lines reviewed against NFPA 13 — the listing certificate goes into the submittal pack with the hanger.
DefaultClevis hanger or clampType 1 clevis, lined clampsChilled water, domestic water, drainage and process pipe, where MSS SP-58 conformance is the consultant's reference and no listing is required.
UL listed and FM approved variants also exist on the clevis hanger, so a listed clevis carries fire mains above the DN200 limit of the sprinkler hanger.
- Decision 2 · Hanger
Clevis hanger or lined split clamp?
DefaultClevis hangerDN15–750, M10–M30 rodLong suspended runs and larger bores — the pipe is levelled from the rod after installation and the hanger swings 15° either side for feed-through.
EPDM-lined split clampDN15–80, M10 rod, −20 to +110 °CChilled and hot water over bedrooms, wards and offices, and PPR, PEX or copper that must not touch steel — the lining cuts transmitted noise by up to 18 dB.
Lined clamps stop at DN80. Above that, specify the clevis hanger and take the acoustic break at the equipment with spring or rubber hangers from the vibration isolator range.
- Decision 3 · Attachment
Beam clamp or concrete anchor?
Beam clampM10 / M12 rodHanger rod from structural steel — beams, purlins, channels — without welding or drilling, so the fireproofing and the structural engineer stay untouched.
DefaultDrop-in or wedge anchorM6–M20 anchorsRod from concrete slab soffits: drop-in anchors for standard hanger drops, draw-in or wedge anchors where the tension load is higher.
Send the beam profile, flange dimensions and specified fixing arrangement so we can quote the matching clamp pattern.
Long hot or cold runs: roller supports
Chilled-water headers, LTHW, steam and condensate lines expand along their axis. Roller stands, roller chairs and adjustable roller hangers (MSS SP-58 Types 41–45, DN50–750, 343 °C) let the pipe travel instead of dragging on a fixed hanger.
Several services on one drop: strut trapeze
41×21 and 41×41 channel in 1.5–2.5 mm, plain or slotted, with channel nuts, brackets and cantilever arms frames trapeze supports and multi-service racks without site welding. Span and load checks run against the published section properties.
Rod grades and finishes for your schedule
Send the rod diameter, grade, length and finish specified in your support schedule. Available grades include BS 3692 4.6–8.8, ASTM A193 B7 and stainless steel 316.
Quick answers
01Do you supply pipe hangers and supports in Kuwait?
Yes. We supply the TEMBO range in Kuwait: MSS SP-58 Type 1 clevis hangers from DN15 to DN750, Type 10 sprinkler hangers from DN20 to DN200, EPDM-lined split clamps from DN15 to DN80, beam clamps, roller supports, strut channel, threaded rod from M6 to M100, and drop-in, draw-in and wedge anchors — quoted as a complete support package from your schedule.
02Which pipe hangers are UL listed and FM approved?
The clevis hanger (TGCH00) and the sprinkler hangers (TGSHN0 with nut, TGSH00 without) have UL listed and FM approved variants, supplied electro-galvanized; the EPDM-lined split clamp has UL listed options. Specify the listed variant on sprinkler scopes reviewed against NFPA 13, and the listing certificate is supplied with the submittal.
03What does MSS SP-58 mean on a pipe hanger?
ANSI/MSS SP-58 is the design and manufacturing standard for pipe hangers and supports; it assigns a type number to each pattern — a clevis hanger is Type 1, a sprinkler hanger Type 10, beam clamps Types 19 and 23, rollers Types 41 to 45 — and since 2009 it also carries the selection and application content previously issued as MSS SP-69. Manufacturers conform to it; there is no third-party SP-58 certificate, so the independent marks to look for on fire scopes are UL listing and FM approval.
04What pipe sizes do the hangers cover?
Clevis hangers DN15 to DN750 (½″ to 30″) on M10 to M30 rod; sprinkler hangers DN20 to DN200 on M10 and M12 rod; EPDM-lined clamps DN15 to DN80 on M10 rod; roller supports DN50 to DN750. Send the required sizes and quantities with your enquiry.
05Which hanger should I use for chilled water pipe over occupied rooms?
Up to DN80, an EPDM-lined split clamp: the moulded lining is rated −20 to +110 °C, cuts structure-borne noise by up to 18 dB and keeps the pipe off bare steel. Above DN80, use a clevis hanger and take the acoustic break at the equipment with spring or rubber hangers from the vibration isolator range.
06Which finish should I specify for a Kuwait project?
Electro-galvanized inside dry plant rooms and ceiling voids; hot-dip galvanized for rooftops, car parks and external racks away from immediate coastal carry-over; stainless steel SS 316 for direct coastal exposure or chloride attack. Zinc flake and epoxy-coated finishes are available where the specification names them.
07Do you supply riser clamps, seismic bracing and trapeze channel as well?
Yes. Riser clamps and split rings for vertical pipework, sway braces and restraints for sprinkler mains, and 41×21 and 41×41 strut channel with channel nuts, brackets and cantilever arms for trapeze and multi-service racks are all part of the same range, so one submittal covers the drop from structure to pipe.
08Can you quote from a pipe support schedule?
Yes. Send the support schedule, BOQ or drawing take-off with pipe sizes and services, the structure at each drop, the finish and rod grade the specification names, and any UL/FM requirement, and we return a line-priced offer with type numbers against every item within 24–48 hours.
