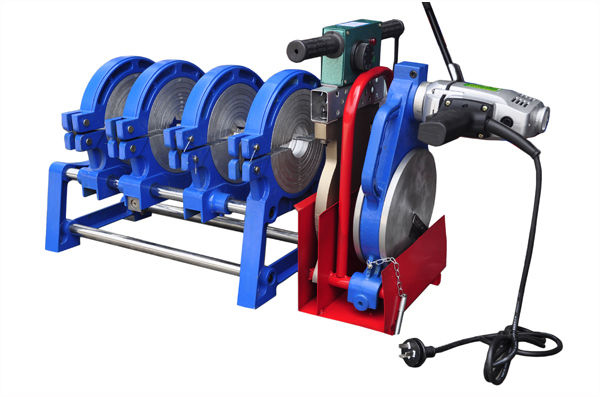

HDPE Butt Fusion Machine
Hydraulic and manual butt fusion machines for joining HDPE pipelines in utility, irrigation, sewage, and industrial networks across a wide diameter range.
Learn more07 / Fusion equipment
Butt fusion and electrofusion equipment for HDPE pressure piping.
Field-ready welding tools and machines for HDPE utility, industrial, and building-services networks in Kuwait, with commissioning and on-site training available.
- Machine size range
- DN 20-800
- CNC & manual options
- Data-logged
- Fusion standard
- ISO 12176
Product range
A coordinated fusion equipment lineup.

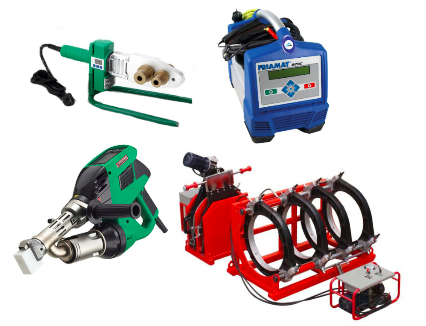

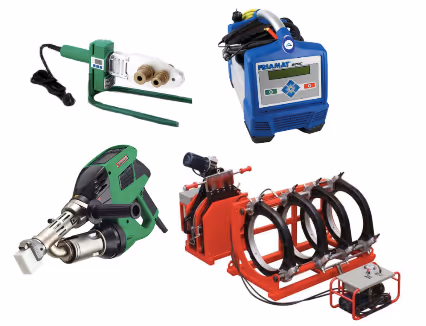

Butt fusion, electrofusion, socket fusion, and extrusion welding equipment with the accessories and service support needed for reliable HDPE, PP, and PPR jointing on site.

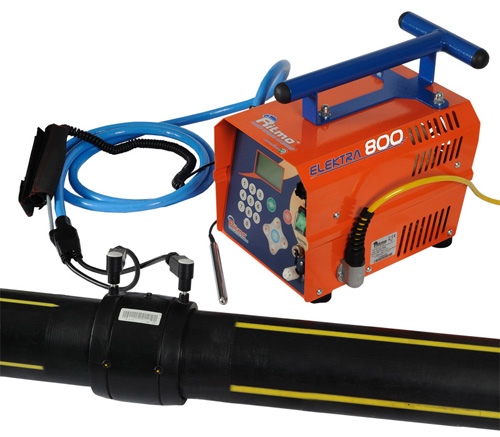

HDPE Electrofusion Machine
Barcode-controlled electrofusion welder for HDPE and PE fittings with traceable logged joints for tie-ins, repairs, and trench-side installation.
Learn more

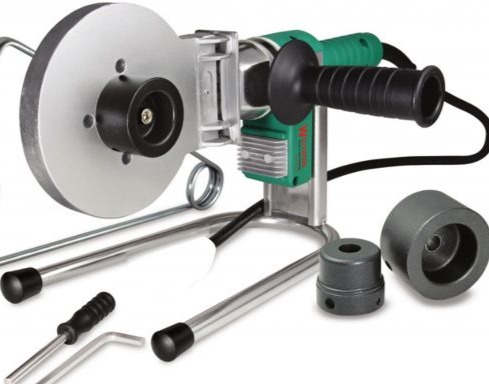

PPR Socket Fusion Machine
Professional socket fusion machine for pressure-rated hot and cold-water systems, supplied with interchangeable dies for common PPR pipe sizes.
Learn more

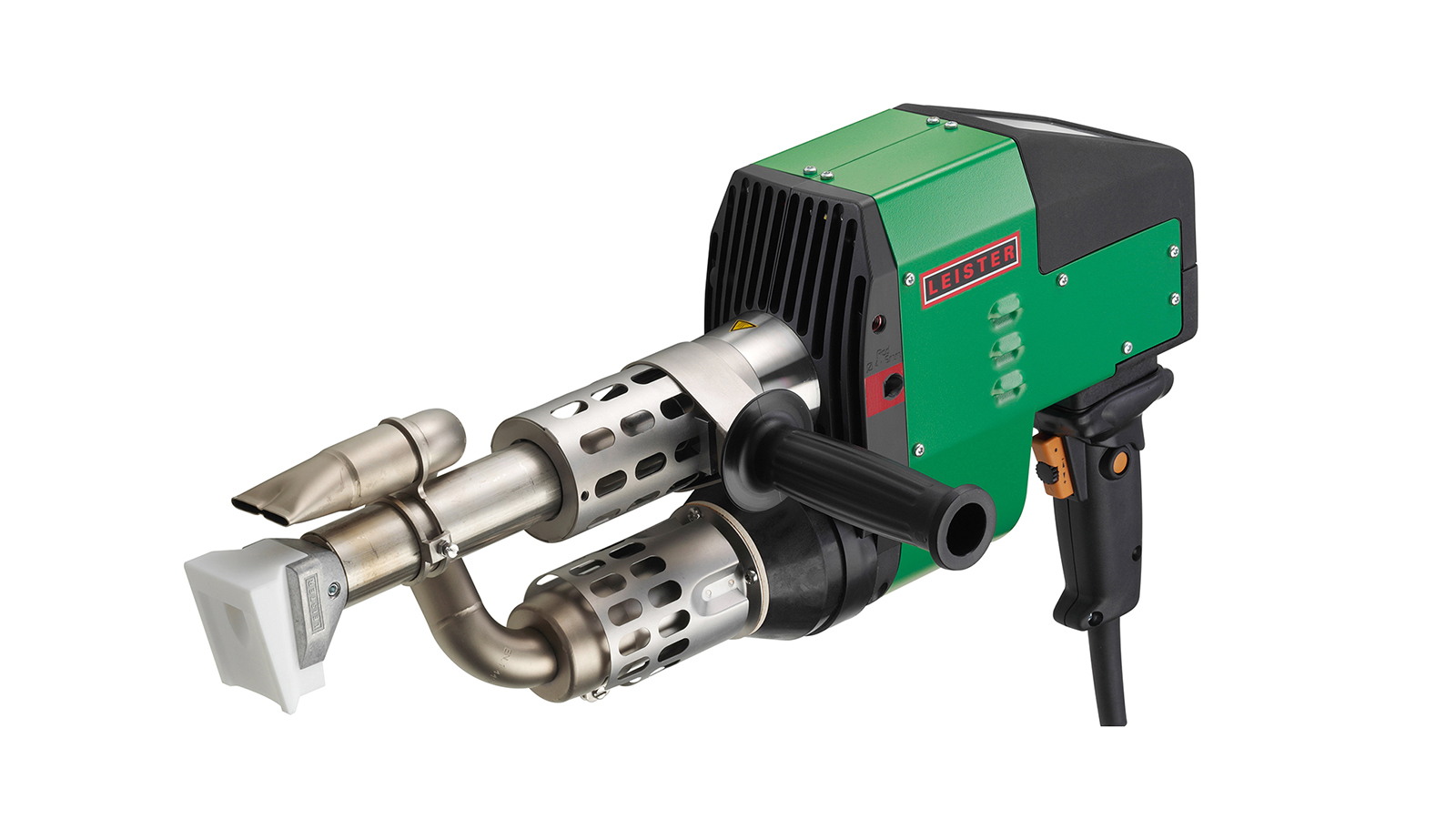

HDPE Extrusion Welder
Portable extrusion welder for controlled bead application on HDPE, PP, and PVC during pipe repair, sheet joining, and workshop fabrication.
Learn more
HDPE Hot Plate Heater
PTFE-coated heating mirror with thermostat control for even heat distribution during butt fusion cycles, compatible with manual and hydraulic machines.
Learn moreStandards & specifications
Field-ready machines selected to match the pipe package.
Fusion machines are matched to the HDPE pipe and fitting scope so crews are not moving between incompatible tools, consumables, or log formats on site.
Request technical support- Process
- Butt fusion / Electrofusion
- Size range
- DN 20 to DN 800, larger on request
- Operator standard
- ISO 12176-1 / -2 / -3 / -4
- Fitting compatibility
- FRIATEC / ELOFIT / Universal barcode
- Traceability
- USB / QR / barcode / Weld log export
- Service
- Commissioning / Calibration / Operator training
Applications in Kuwait
Welding equipment for traceable, repeatable plastic pipe jointing.
The right machine package reduces rejected joints, improves site productivity, and keeps QA records clear on HDPE, PP, and PPR pipework.

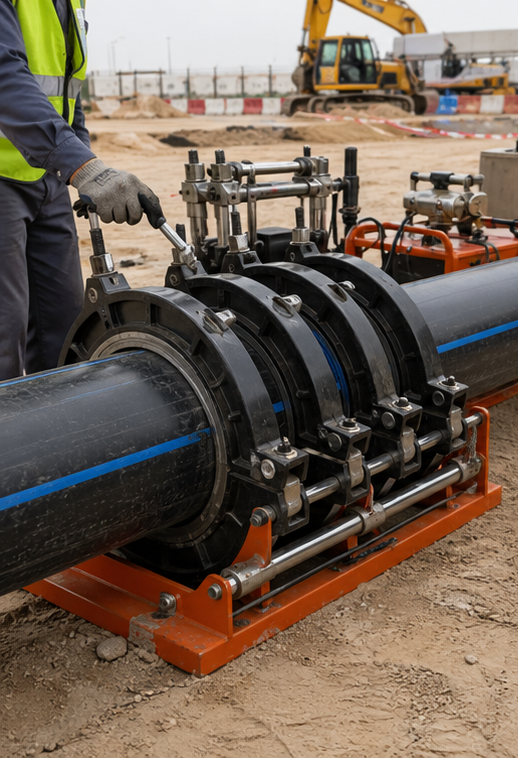

Butt fusion for pressure pipelines
Manual and hydraulic butt fusion machines for long-run HDPE pipe installation in water, sewage, irrigation, and industrial pressure networks.

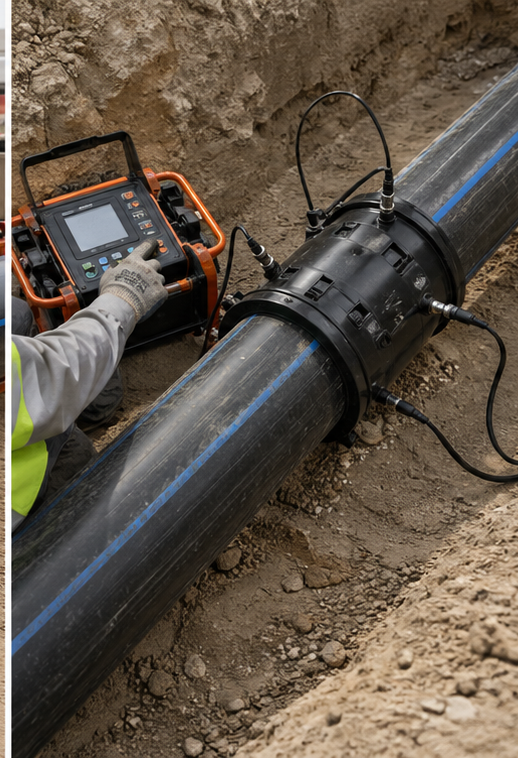

Electrofusion for fittings and repairs
Barcode-controlled electrofusion machines for couplers, saddles, tapping tees, repairs, and constrained trench locations where traceability matters.

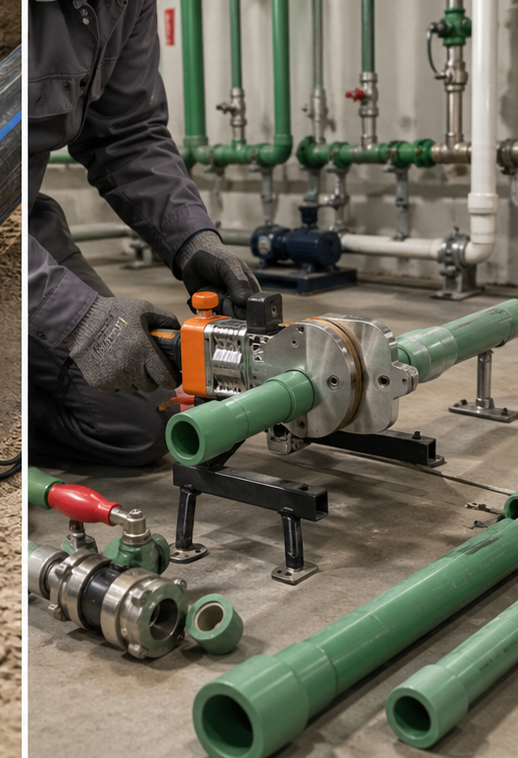

PPR socket fusion tools
Socket fusion machines and accessories for hot and cold-water building-services pipework requiring consistent temperature control and clean joints.

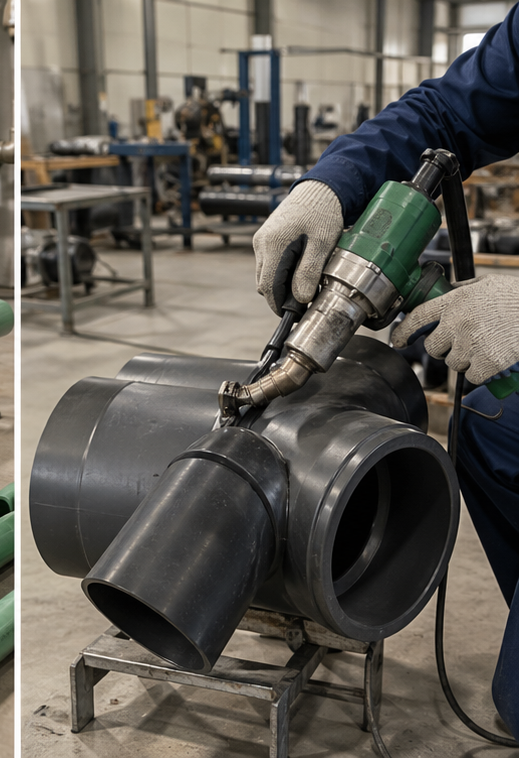

Extrusion welders and hot plates
Portable extrusion welders, PTFE-coated hot plates, and accessories for repairs, sheet work, fabricated fittings, and workshop support.
Machine sizing
Machine size envelope vs pipe OD — pick the unit from the largest pipe on the job.
Butt fusion machines are sized by the pipe OD they clamp: the smallest field unit covers 40 to 160 mm and the largest 630 to 1000 mm, with reducing inserts for the smaller sizes on the same job. Electrofusion units read the fitting barcode and cover 20 to 315 mm, 20 to 630 mm or 20 to 1000 mm depending on the model. These are the envelopes we quote against, from the ELOFIT range.
Butt fusion machines by pipe range
Hydraulic units with heater plate, facing tool and reducing inserts.
| Machine | Pipe range (mm) | Typical Kuwait job |
|---|---|---|
| S10160 | 40 – 160 | Building services, irrigation laterals, small mains |
| S10200 | 63 – 200 | Distribution mains, plant piping |
| S10250 | 75 – 250 | Distribution mains |
| S10315 | 90 – 315 | Distribution and TSE mains |
| S10355 | 125 – 355 | Distribution and TSE mains |
| S10500 | 200 – 500 | Transmission mains |
| S10630 | 280 – 630 | Transmission mains |
| S10800 | 500 – 800 | Large transmission, intake and outfall lines |
| S101000 | 630 – 1000 | Large transmission, intake and outfall lines |
Aligners for electrofusion tie-ins on the same job: ALL063/4 (20–63 mm), ALL225/4 (50–225 mm), ALL315/4 (225–400 mm).
Electrofusion units and jointing tools
Size the unit to the largest fitting; the scraper, cutter and squeezer follow the same bands.
| Unit or tool | Range (mm) | Notes |
|---|---|---|
| Multifunction welding unit E8500 / E8500L | 20 – 315 / 20 – 160 | Barcode reading, weld log |
| Multifunction welding unit E9001 / E9001HW | 20 – 630 / 20 – 1000 | Large mains |
| SMARTWELD / SMARTWELDL / SMARTWELDSL | 20 – 400 / 20 – 160 / 20 – 63 | Compact site units |
| Revolving scraper RAT / RATOR / RAT_RIT | 75 – 400 / 20 – 180 / 50 – 800 | Removes the oxide layer before every joint |
| Pipe cutter TT / SCUT / TA | 16 – 75 / 32 – 180 / to 315 | Square cuts for butt and electrofusion ends |
| Pipe squeezer SCH | 20 – 200 | Flow stop for live-main work |
| Drilling machine for networks under pressure 00FP | 90 – 1000 | Tapping tees on live mains |
| Pressure test unit SENS | 1 mbar – 50 bar | Section tests before backfill |
Which process for which joint
The pairing behind most Kuwait HDPE packages: butt fusion along the run, electrofusion at the connections.
| Joint | Process | Equipment |
|---|---|---|
| Straight welded run, 110 mm and above | Butt fusion | S10 series sized to the largest OD |
| Tie-in between two fixed ends, repair, coil-to-coil | Electrofusion coupler | E8500 / E9001 unit, scraper, aligner |
| Service connection on a live main | Electrofusion tapping tee | E8500 / E9001 unit plus 00FP drilling machine |
| PPR building services, 20 – 110 mm | Socket fusion | PPR socket fusion tool with dies |
| Tank and lining seams, fabricated repairs | Extrusion welding | Hand extruder with PE rod |
Frequently asked questions
Common welding machine questions.
Practical answers for teams choosing butt fusion, electrofusion, socket fusion, and extrusion welding equipment.
01Do you supply HDPE butt fusion and electrofusion machines?
Yes. We supply butt fusion machines, electrofusion machines, PPR socket fusion machines, extrusion welders, hot plates, and jointing accessories for plastic pipe systems.
02Can you match a machine to the pipe diameter range?
Yes. Send the pipe sizes, SDR, daily joint target, and QA requirements and we can recommend the correct butt fusion or electrofusion machine package.
03Do you provide training or commissioning support?
Yes. We can support commissioning, operator guidance, and basic site training so the crew understands machine setup, joint preparation, fusion cycles, and record keeping.
Request pricing
Share the jointing scope and we'll match it.
Send the pipe range, daily joint rate, and QA requirements and we'll respond with the right machine package, accessories, and training plan for the site.
