TEMBO / TGSCH0
Strut Channels & Brackets

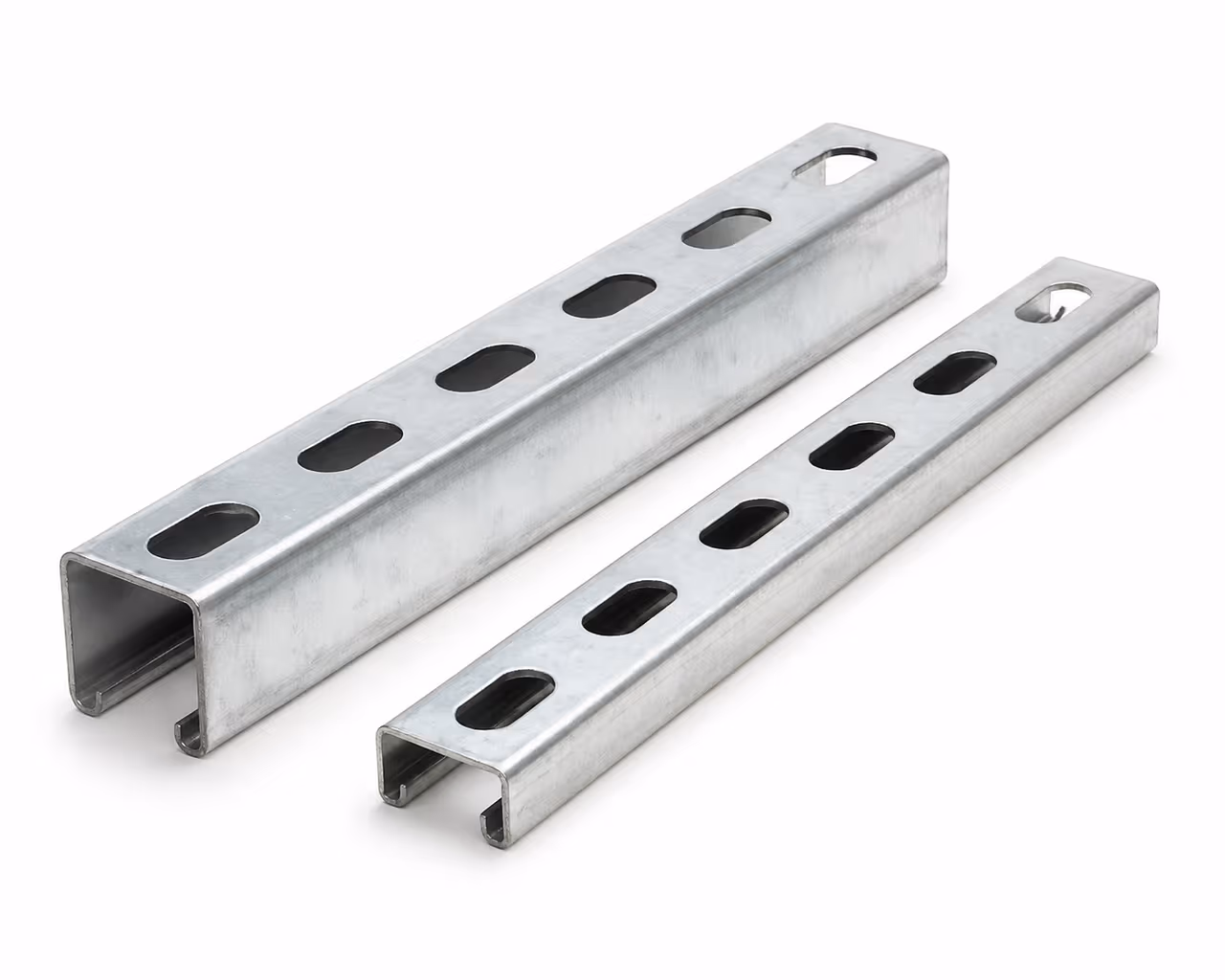

Cold-formed strut channel in 41x21 and 41x41 profiles with the nuts, brackets, and cantilever arms to frame trapeze supports, multi-service racks, and equipment stands without site welding.
Profiles41x21/41mm, plus variants
Thickness1.5-2.5mm, three gauges
Lengths2/3/6 mPlain or slotted
Overview
The modular backbone of MEP support.
Strut channel is the modular backbone of most MEP support work: a cold-formed steel section whose inturned lips grip a channel nut anywhere along its length, so brackets, hangers, and clamps can be positioned and re-positioned without drilling or welding.
The TEMBO TGSCH0 range covers 41x21 and 41x41 profiles - plus deeper and back-to-back combinations - in 1.5, 2.0, and 2.5 mm thicknesses, plain or slotted (12/30 and 14/28 slot patterns), in 2, 3, and 6 metre lengths.
Combined Cooperation supplies channel in Kuwait with pre-galvanized, electro-galvanized, and hot-dip galvanized finishes together with the accessory hardware - channel nuts, washers, wall brackets, and cantilever arms - so a complete rack ships against one order.
No-weld modular framing
Plain & slotted profiles
Published section data
Full accessory hardware
Technical specifications
Profiles41x21, 41x41 mm (plus 62 mm and back-to-back variants)
Thickness1.5 / 2.0 / 2.5 mm
Lengths2 m / 3 m / 6 m
Slot patterns12/30 and 14/28 (custom slots on request)
MaterialMild steel
FinishesPre-galvanized, electro-galvanized, hot-dip galvanized, zinc flake
AccessoriesChannel nuts, coupling nuts, washers, wall brackets, cantilever arms
Section propertiesPublished per profile in the datasheet
Product range
Product options and applications.
Explore the TEMBO range for your installation. Send the equipment or support schedule for a quotation and the matching product documentation.
Trapeze supports for pipe and ductCable tray and raceway racksRiser and shaft framingEquipment stands and wall framing
Questions & answers
Common questions about strut channels & brackets.
0141×21 or 41×41 — how is the channel profile chosen for a trapeze?
Profile and thickness follow the span and the services the trapeze carries. The 41×41 section, and the deeper 62 mm and back-to-back combinations, give a stiffer member than 41×21, and each profile comes in 1.5, 2.0, and 2.5 mm. Send the support schedule and the channel section named in the specification, and we will match it.
02Which slot patterns are available on slotted channel?
Channel is supplied plain or slotted in the 12/30 and 14/28 patterns, with custom slotting on request. Plain channel still takes a channel nut anywhere along its length, because the inturned lips grip the nut without drilling.
03Which channel finish suits a rooftop or external rack?
Hot-dip galvanized or zinc flake for external, rooftop, and coastal exposure; pre-galvanized and electro-galvanized for internal plantrooms, shafts, and ceiling voids. Order the nuts, washers, and brackets in the same finish as the channel.
04What lengths does the channel come in, and what hardware is available with it?
Stock lengths are 2, 3, and 6 metres. Channel nuts, coupling nuts, washers, wall brackets, and cantilever arms are supplied to match, and threaded rod and beam clamps can be added so a complete rack arrives against one order.
