Ceiling Suspended Vibration Isolators
Spring and rubber isolation hangers that stop suspended FCUs, fans, piping, and ductwork from feeding vibration into the slab above occupied space.
Hanger typesSpring / rubberCeiling suspended
Deflection25 mmSpring hanger
Spring designBS 1726Part 1: 1987
Overview
Stop vibration at the hanger rod.

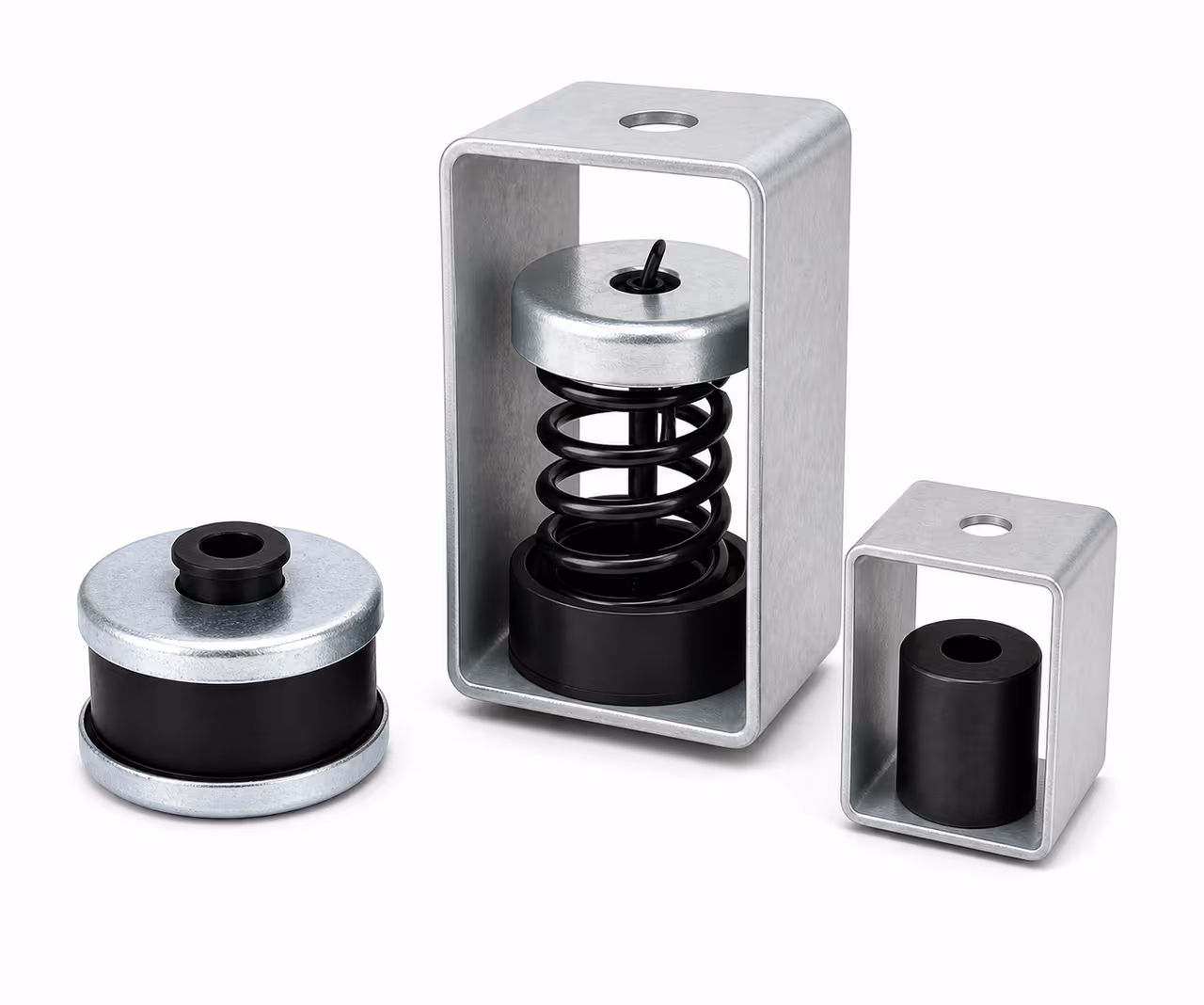

Anything rotating that hangs from a slab - fan coil units, cabinet fans, inline fans - and the piping and ductwork connected to it will transmit vibration through its hanger rods unless the rod is broken with an isolator. The TEMBO spring hanger (TGSPH0) sets a colour-coded steel spring in series with a moulded elastomeric element inside a welded bracket, isolating both low-frequency vibration and high-frequency noise in one assembly.
Spring hangers have 25 mm deflection and are designed to BS 1726 Part 1. Rubber hangers (TGRH00) and duct mounts (TGDM00) give compact elastomeric isolation for pipes, ducts, and brackets without the height of a spring unit.
Combined Cooperation supplies the range in Kuwait for FCU, VRF, VAV, and fan installations, and typically recommends isolating the first few pipe supports leading away from isolated equipment so vibration does not bypass the equipment mounts.
Spring + elastomer in series
Blocks noise & vibration
Rubber & duct variants
Technical specifications
Spring designBS 1726 (Part 1): 1987, SAE recommendations
Spring hangers25 mm deflection
Rubber hangers8-10 mm deflection
Duct mountsElastomeric mount
ElementSteel spring in series with moulded elastomer
IdentificationColour-coded springs by load rating
Rod sizeM10 typical
Product range
Product options and applications.
Explore the TEMBO range for your installation. Send the equipment or support schedule for a quotation and the matching product documentation.
Fan coil units and cabinet fansVRF and VAV installationsSuspended piping near rotating plantDuctwork over quiet spaces
Questions & answers
Common questions about ceiling suspended vibration isolators.
01Spring hanger or rubber hanger — which suits a fan coil unit?
The TGSPH0 spring hanger gives 25 mm deflection and isolates both low-frequency vibration and high-frequency noise. The TGRH00 rubber hanger gives 8–10 mm deflection in a compact elastomeric unit, for positions where the ceiling void cannot take the height of a spring hanger. Follow the deflection the consultant specifies.
02Why does the spring hanger include an elastomer element as well?
The steel spring handles low-frequency vibration from the rotating unit; the moulded elastomer in series with it blocks the high-frequency noise a bare spring would pass. Both sit inside one welded bracket on the hanger rod.
03Does the pipework leaving an isolated FCU or fan need isolating too?
Yes. Isolate the first few pipe supports leading away from the isolated equipment, otherwise vibration bypasses the hangers through the rigid pipe and its supports.
04Where are the TGDM00 duct mounts used, and what rod do the hangers take?
Duct mounts give elastomeric isolation for ducts and brackets, typically over quiet spaces. The hangers are normally on M10 rod, and spring hangers are colour-coded by load rating to BS 1726 Part 1.
